2016 GMC Savana 3500 Cargo Specs, Features & Options
Here's everything you need to know about each trim in the 2016 GMC Savana 3500 Cargo lineup. Compare pricing, specs, key features and more.

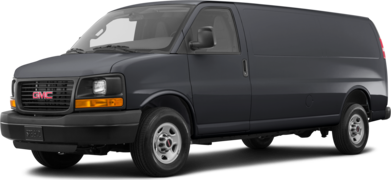

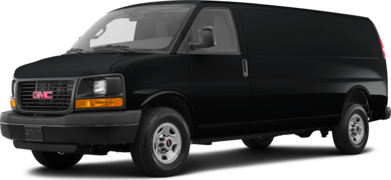

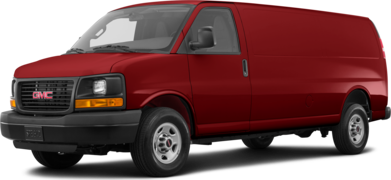

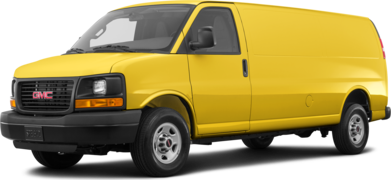

1 of 4  Savana 3500 Cargo Van 3D | 2 of 4  Savana 3500 Cargo Extended Van 3D | 3 of 4  Savana 3500 Cargo Diesel Extended Van 3D | 4 of 4  Savana 3500 Cargo Diesel Van 3D | |||
|---|---|---|---|---|---|---|
| Fair Market Price | $17,077 | $24,875 | $28,120 | $28,978 | ||
| Fuel Type | Flexible Fuel | Flexible Fuel | Diesel | Diesel | ||
| Horsepower | 329 @ 5400 RPM | 329 @ 5400 RPM | 260 @ 2800 RPM | 260 @ 2800 RPM | ||
| Seating | 2 | 2 | 2 | 2 | ||
| Cargo Volume | 270.40 cu ft | 313.90 cu ft | 313.90 cu ft | 270.40 cu ft | ||
| Tire Size | LT245/75R16E | LT245/75R16E | LT245/75R16E | LT245/75R16E | ||
| Towing Capacity | 10,000 lbs | 10,000 lbs | 10,000 lbs | 10,000 lbs | ||
| Transmission | Auto, 6-Spd HD Overdrive | Auto, 6-Spd HD Overdrive | Auto, 6-Spd HD Overdrive | Auto, 6-Spd HD Overdrive | ||
| Curb Weight | 5,458 pounds | 5,679 pounds | 5,679 pounds | 5,458 pounds |
| Emergency & Security Services | Optional | Optional | Optional | Optional | ||
| Child Seat Anchors | Not available | Not available | Not available | Not available | ||
| Child Door Locks | Standard | Standard | Standard | Standard | ||
| Traction Control | Standard | Standard | Standard | Standard |
| Bluetooth Wireless Technology | Optional | Optional | Optional | Optional | ||
| Cruise Control | Optional | Optional | Optional | Optional | ||
| Remote Keyless Entry | Optional | Optional | Optional | Optional | ||
| Remote Engine Start | Optional | Optional | Optional | Optional | ||
| Smartphone Interface | Optional | Optional | Optional | Optional | ||
| Internet Access | Optional | Optional | Optional | Optional | ||
| Navigation System | Optional | Optional | Optional | Optional | ||
| Real-Time Traffic Information | Optional | Optional | Optional | Optional | ||
| Touch Screen Monitor | Optional | Optional | Optional | Optional | ||
| Hands Free Phone | Optional | Optional | Optional | Optional |
| Bluetooth Streaming Audio | Optional | Optional | Optional | Optional | ||
| Bluetooth Wireless Technology | Optional | Optional | Optional | Optional | ||
| Satellite Radio | Optional | Optional | Optional | Optional |
| Remote Keyless Entry | Optional | Optional | Optional | Optional | ||
| Cruise Control | Optional | Optional | Optional | Optional | ||
| Bluetooth Streaming Audio | Optional | Optional | Optional | Optional | ||
| Heated Mirrors | Optional | Optional | Optional | Optional |
| Torque | 373 @ 5400 RPM | 373 @ 5400 RPM | 525 @ 2800 RPM | 525 @ 2800 RPM |
| Power Driver's Seat | Optional | Optional | Optional | Optional |
| Leather-Wrapped Steering Wheel | Optional | Optional | Optional | Optional | ||
| Power Outlet | Standard | Standard | Standard | Standard | ||
| Power Windows | Standard | Standard | Standard | Standard | ||
| Rear Window Defroster | Optional | Optional | Optional | Optional | ||
| Steering Wheel Controls | Optional | Optional | Optional | Optional | ||
| Tilt Steering Wheel | Optional | Optional | Optional | Optional | ||
| Cup Holder Count | Standard | Standard | Standard | Standard |
| Privacy Glass | Standard | Standard | Standard | Standard | ||
| Roof Rails | Optional | Optional | Optional | Optional |
| Drivetrain | RWD | RWD | RWD | RWD | ||
| Recommended Fuel | Regular | Regular | Diesel | Diesel | ||
| Stability Control | Standard | Standard | Standard | Standard | ||
| Transmission Type | Automatic | Automatic | Automatic | Automatic |
| Curb Weight | 5458 pounds | 5679 pounds | 5679 pounds | 5458 pounds | ||
| Fuel Capacity | 31 gallons | 31 gallons | 31 gallons | 31 gallons | ||
| Front Head Room | 39.8 inches | 39.8 inches | 39.8 inches | 39.8 inches | ||
| Front Leg Room | 41.3 inches | 41.3 inches | 41.3 inches | 41.3 inches | ||
| Minimum Ground Clearance | 7.7 inches | 7.7 inches | 7.7 inches | 7.7 inches | ||
| Overall Length | 224.1 inches | 244.1 inches | 244.1 inches | 224.1 inches | ||
| Payload Capacity | 4120 pounds | 3899 pounds | 3899 pounds | 4120 pounds | ||
| Front Shoulder Room | 68.8 inches | 68.8 inches | 68.8 inches | 68.8 inches | ||
| Turning Diameter | 49.2 feet | 54.5 feet | 54.5 feet | 49.2 feet | ||
| Wheel Base | 135 inches | 155 inches | 155 inches | 135 inches |
FAQs
Is the GMC Savana 3500 Cargo a 4 or 6 cylinder?
All trim levels of the 2016 Savana 3500 Cargo feature a 8 cylinder engine. For a more detailed look at the 2016 Savana 3500 Cargo specs, features and options check out Kelley Blue Book's 2016 GMC Savana 3500 Cargo specs page.
Does the 2016 GMC Savana 3500 Cargo have a turbo?
Yes, the following 2016 Savana 3500 Cargo trims have turbo engines: Diesel Extended Van 3D with a V8, Turbo Dsl, 6.6L, Diesel Van 3D with a V8, Turbo Dsl, 6.6L. The following 2016 Savana 3500 Cargo trims do not have turbo engines: Van 3D with a V8, Flex Fuel, 6.0 Liter, Extended Van 3D with a V8, Flex Fuel, 6.0 Liter. For a more detailed look at the 2016 Savana 3500 Cargo specs, features and options check out Kelley Blue Book's 2016 GMC Savana 3500 Cargo specs page.
What features does a 2016 Savana 3500 Cargo have?
2016 GMC Savana 3500 Cargo features include AM/FM Radio, Child Door Locks, and Driver Airbag. For a full list of All 2016 Savana 3500 Cargo trims and their respective features and specs compared side-by-side, check out Kelley Blue Book's 2016 GMC Savana 3500 Cargo specs page.
How much horsepower does a 2016 Savana 3500 Cargo have?
The 2016 Savana 3500 Cargo ranges in power from the Diesel Extended Van 3D with 260 horsepower to the Extended Van 3D with 329 horsepower. For a more detailed look at the 2016 Savana 3500 Cargo specs, features and options check out Kelley Blue Book's 2016 GMC Savana 3500 Cargo specs page.
Is the GMC Savana 3500 Cargo underpowered?
It depends on your definition of underpowered. The 2016 Savana 3500 Cargo ranges in power from the Diesel Extended Van 3D with 260 horsepower to the Extended Van 3D with 329 horsepower. For a more detailed look at the 2016 Savana 3500 Cargo specs, features and options check out Kelley Blue Book's 2016 GMC Savana 3500 Cargo specs page.
